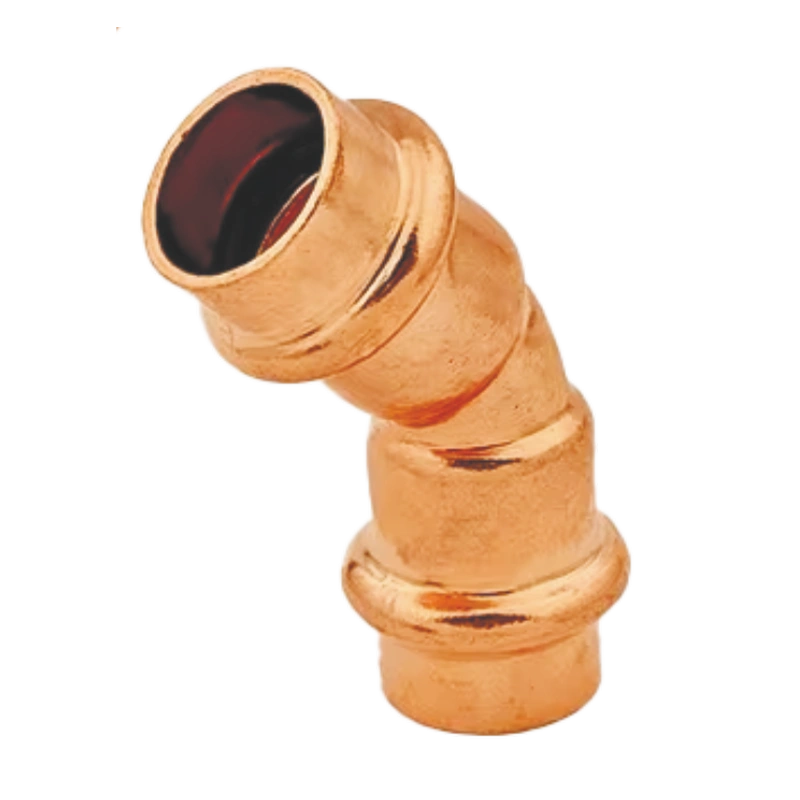

45° press copper elbows
- Standard EN 1254-1 (fittings), EN 1057 (tubes)
- Compound Copper Cu-DHP (CW024A)
Seal: EPDM (for water), HNBR (for gas), FKM (fluorocarbon rubber)
Working pressure: up to 16 bar
Working temperature: up to 110–120 °C
Operating temperature: from -20 °C to +200 °C (up to +280 °C short-term)
Applications: Water supply, heating, cooling, compressed air systems
| Pipe outer diameter, mm | Designation (D×D) | Bend radius (approx.) | Application |
| 15 | 15 × 15; 15 × 22 | ~18–20 mm | Residential water supply, heating |
| 18 | 18 × 18 | ~22 mm | Underfloor heating, manifolds |
| 22 | 22 × 22 | ~25 mm | Standard plumbing and heating |
| 28 | 28 × 28 | ~30 mm | Private houses, large pipelines |
| 35 | 35 × 22; 35 × 35 | ~40 mm | Manifolds, boiler rooms |
| 42 | 42 × 42 | ~50 mm | Industrial systems |
