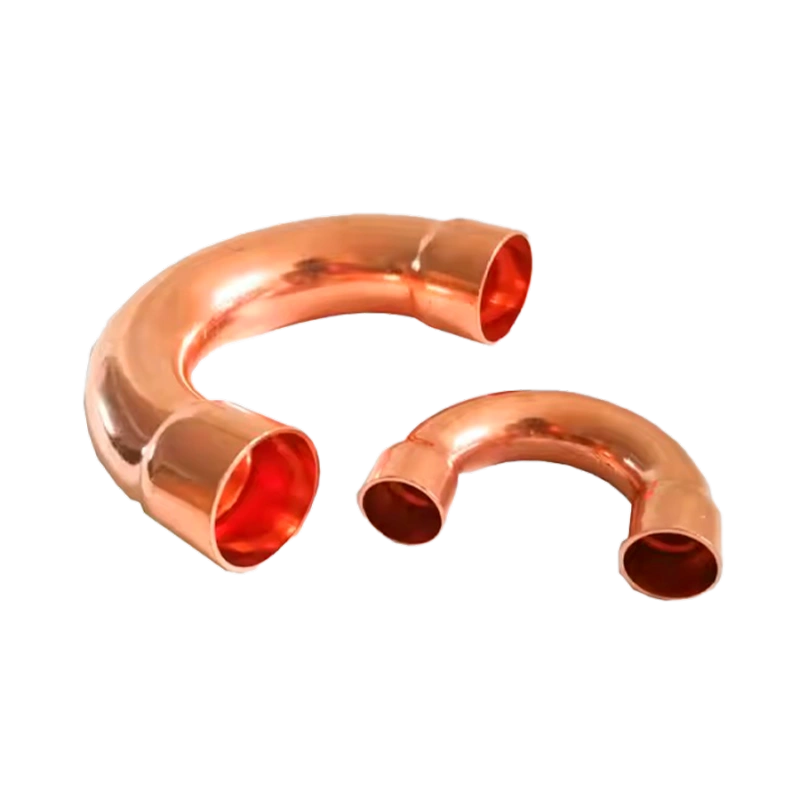

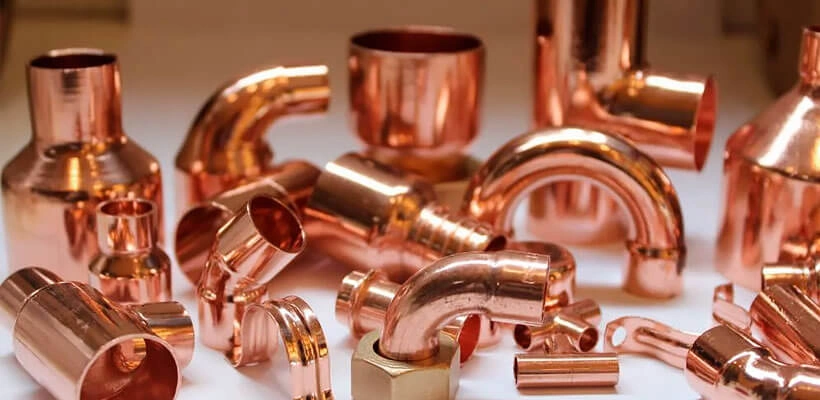

U-shaped copper fitting
Connection method: press fitting, soldering (copper brazing)
Applications: heating, water supply, cold and hot water systems, air conditioning systems

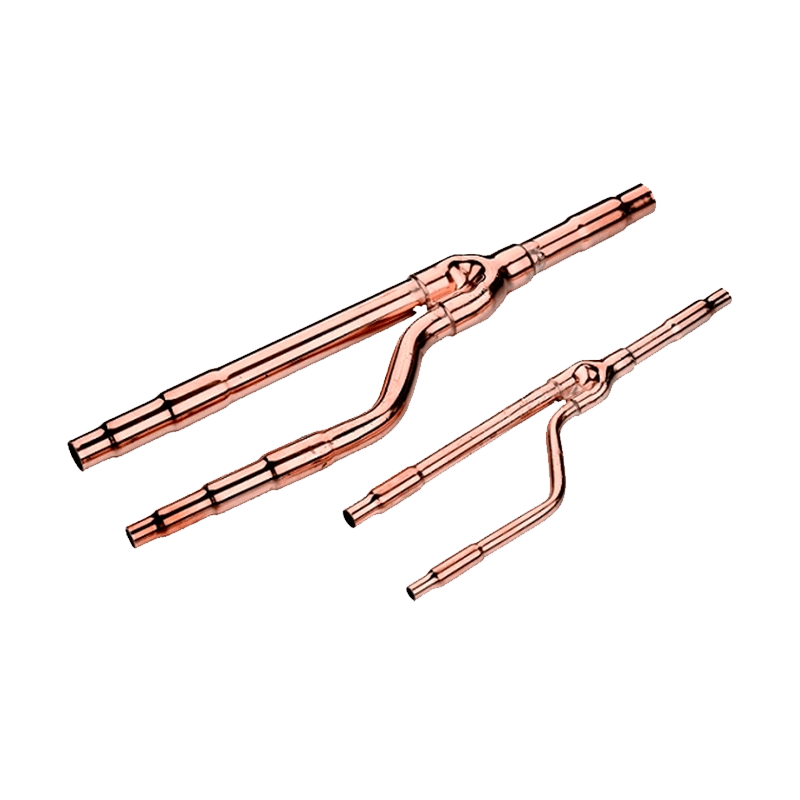

Copper capillary tube
Pressure: up to 16 bar
Temperature: up to +110 °C
Inner surface cleanliness: free from oil and solder residues
Tightness: 100% product testing

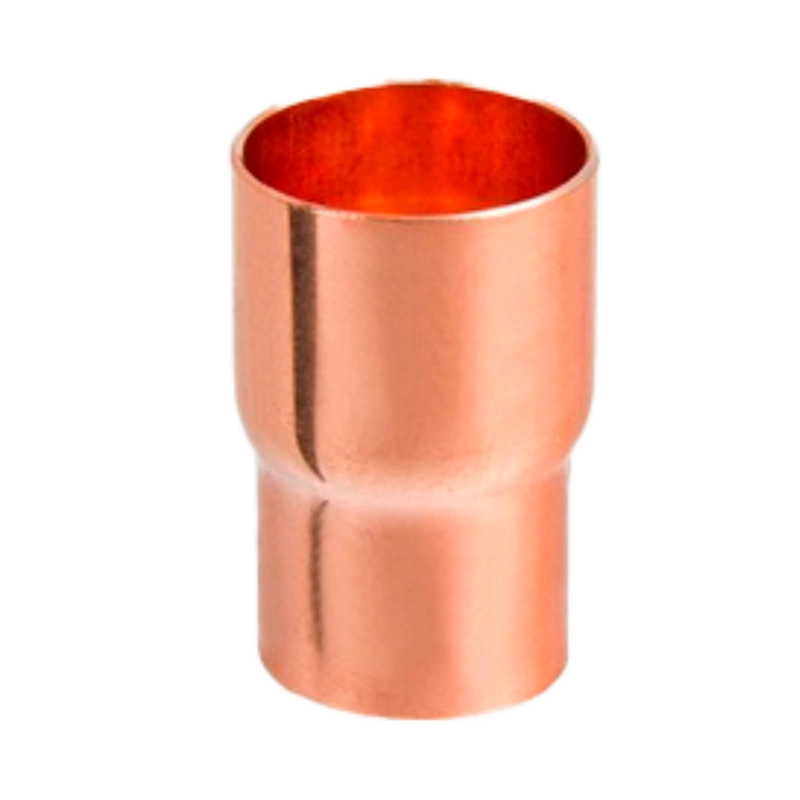

Press copper reducing fittings (pipe–pipe)
Specifications:
- Temperature: up to +110 °C
- Pressure: up to 16 bar

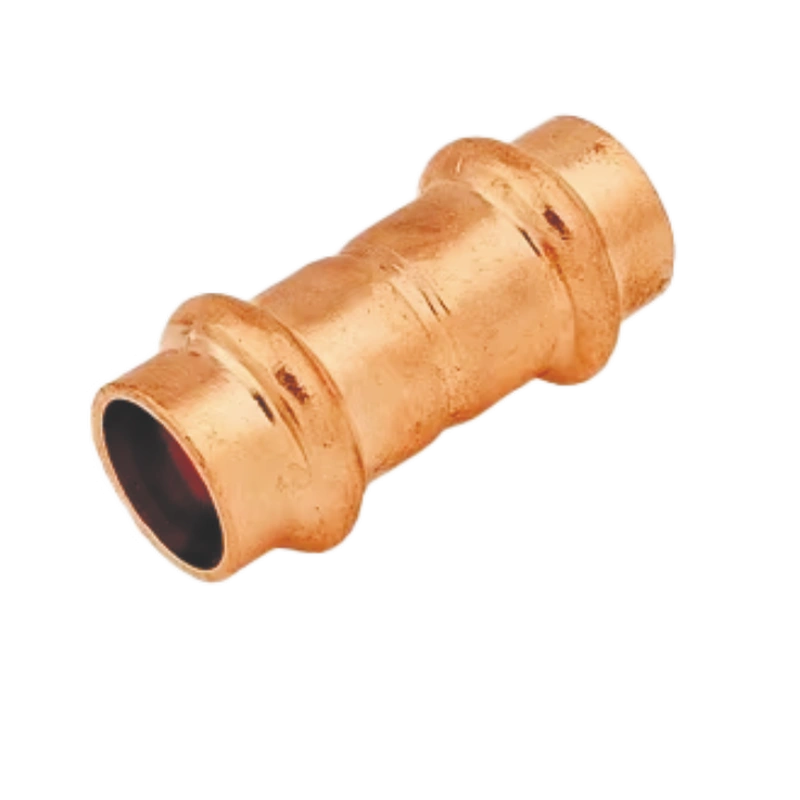

Standard sizes of press copper couplings (straight)
Seal: EPDM (water), HNBR (gas)
Temperature: up to +110 °C
Pressure: up to 16 bar

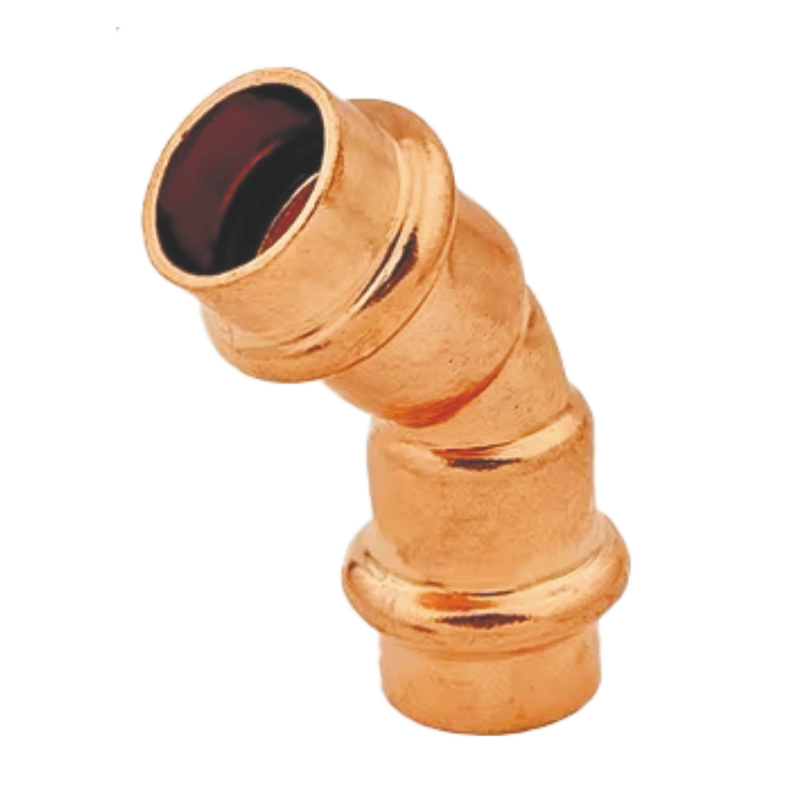

45° press copper elbows
Seal: EPDM (for water), HNBR (for gas), FKM (fluorocarbon rubber)
Working pressure: up to 16 bar
Working temperature: up to 110–120 °C
Operating temperature: from -20 °C to +200 °C (up to +280 °C short-term)
Applications: Water supply, heating, cooling, compressed air systems

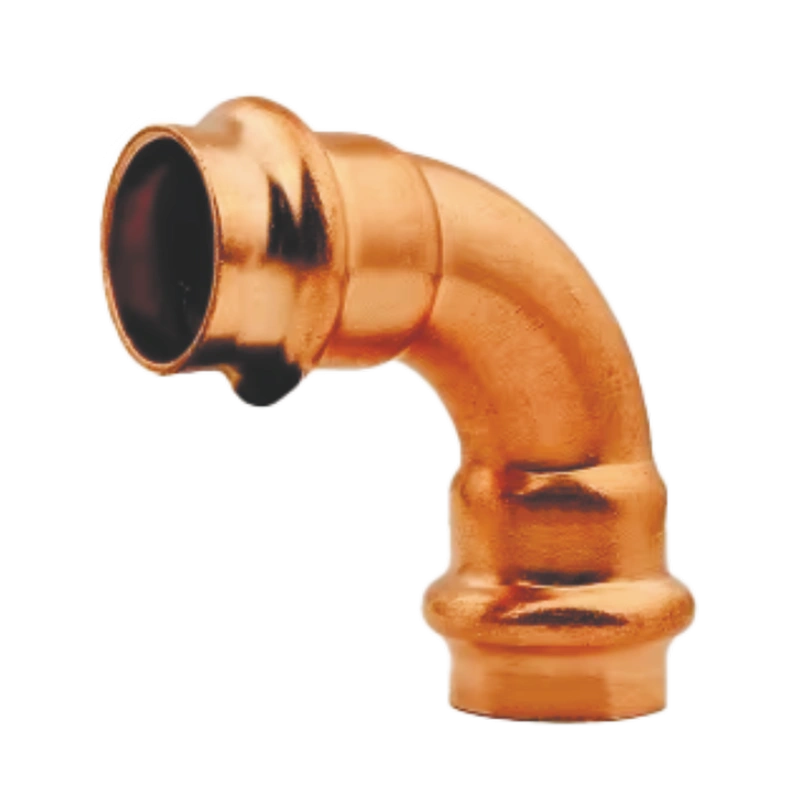

90° press copper elbows
Seal: EPDM (water), HNBR (gas)
Pressure: up to 16 bar
Temperature: up to +110 °C

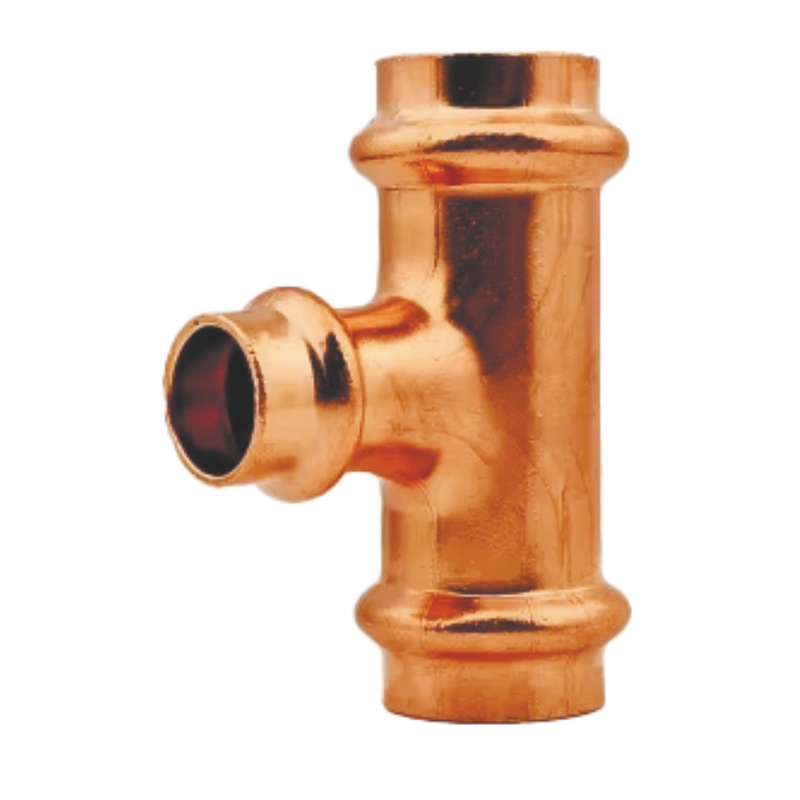

Copper press tees
Seal: EPDM (water), HNBR (gas)
Max pressure: up to 16 bar
Temperature: up to 110–120 °C
