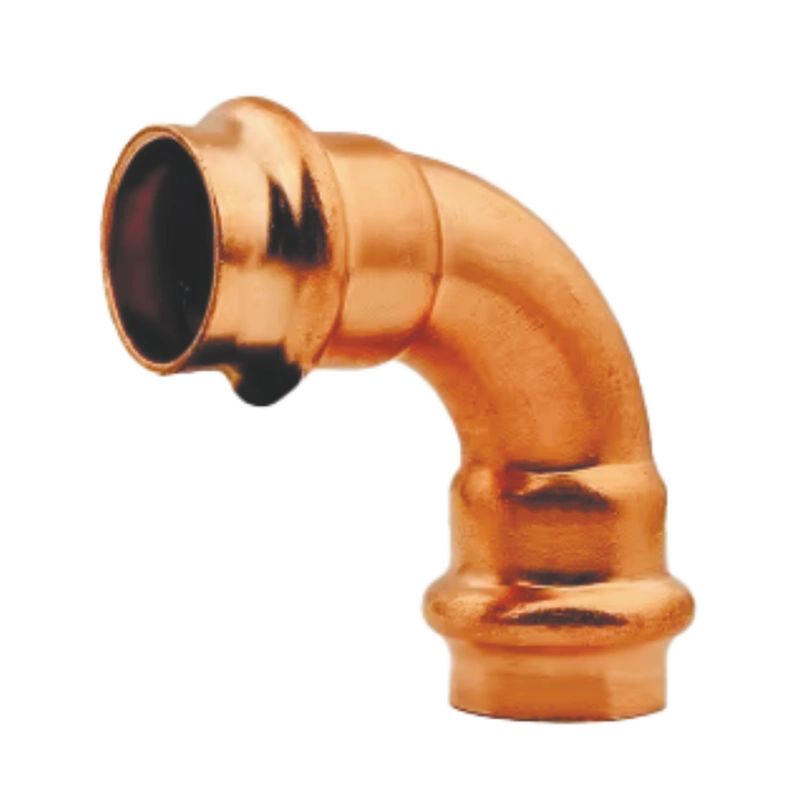

90° press copper elbows
- Standard EN 1254-1, EN 1057
- Compound Copper (type CW024A, without internal coating)
Seal: EPDM (water), HNBR (gas)
Pressure: up to 16 bar
Temperature: up to +110 °C
| Pipe outer diameter (mm) | Fitting name | Designation | Bend radius (approx.) | Application |
| 15 | Press elbow 90° | 15×15; 15×22 | ~20–25 mm | Apartments, radiators |
| 18 | Press elbow 90° | 18×18 | ~25 mm | Water/heating |
| 22 | Press elbow 90° | 22×22 | ~30 mm | Private houses |
| 28 | Press elbow 90° | 28×28 | ~35–40 mm | Manifolds, boiler rooms |
| 35 | Press elbow 90° | 35×22; 35×35 | ~45 mm | Commercial facilities |
| 42 | Press elbow 90° | 42×42 | ~55 mm | Industrial systems |
